Finding a child

Overview

The BadgerNet Spine offers an API to write and read FHIR data to/from individual multi-episode child records.

A BadgerNet Child Record is made up of one or more single Child Care Episodes. Each Child Care Episode has its own logical ID.

When performing a read request ($everything) the logical ID of the whole child can be used or the logical ID of any of the single child episodes can be used in the query URL path.

For a Spine Client System to obtain the Logical ID of a whole-child record or any of its constituent child episodes, it must first query the Spine, passing a set of keys within the body of the request which uniquely identify the child. This set of keys is in the form of a Parameters FHIR resource.

Request

POST [baseUrl]/Patient/$find-child

The Parameters FHIR resource within the body of the request consists of two key request parameters (National ID, DOB):

national-id

(FHIR Identifier) National single-person healthcare identifier. Must be an exact match, and include the corresponding FHIR Identifier System ((e.g. for NZ: “https://standards.digital.health.nz/ns/nhi-id”.)

dob

(FHIR Date) Date of Birth of the child. Must be an exact match to the child’s date of birth.

break-glass-reason

In addition to the query parameters for identifying the child, a Break Glass Reason parameter must be included to indicate the reason that access to the patient’s record is being requested:

(String) The justification for access to the patient’s child record. This reason will be stored as a Break Glass note within the BadgerNet child record, should one be required.

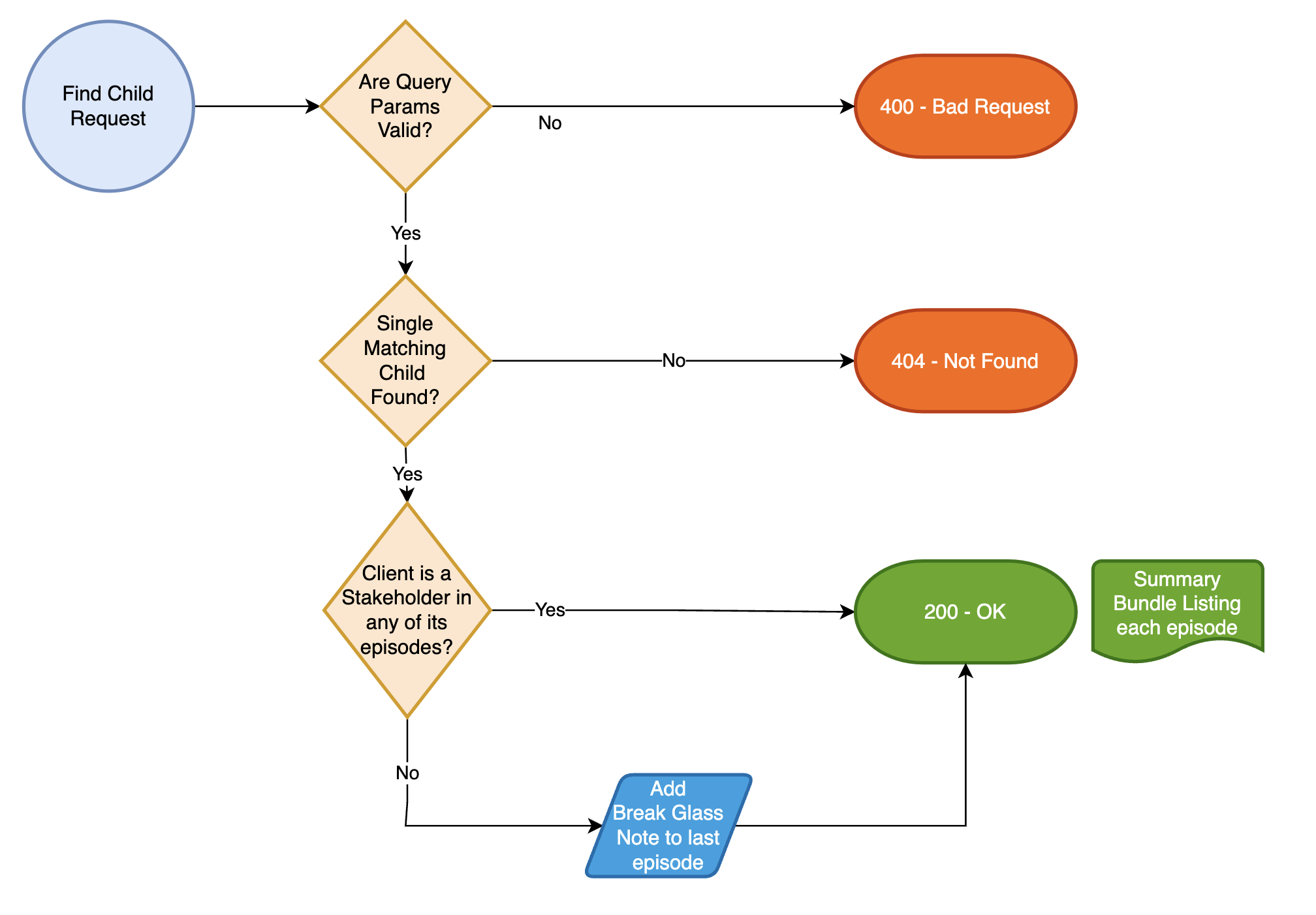

Request Flow

Response

In response to the query, a FHIR Bundle is returned containing a Patient resource (in FHIR Summary form) along with a list of 1..n EpisodeOfCare recourses (in FHIR Summary form). The logical ID of each Child Care Episode is found within each Episode resource. The resulting [patient] resource in this bundle is a summary version of the last paediatric Care Episode demographics.

Possible response codes

Code	Description
200	Child record found
404	Not Found
400	Bad request
422	Unprocessable Entity

Example

Request Body

JSON

{
    "resourceType": "Parameters",
    "parameter": [
        {
            "name": "national-id",
            "valueIdentifier": {
                "use": "official",
                "system": "https://fhir.nhs.uk/Id/nhs-number",
                "value": "5555555555"
            }
        },
        {
            "name": "dob",
            "valueDate": "2022-11-01"
        },
        {
            "name": "break-glass-reason",
            "value": "Local hospital EPR data import query"
        }
    ]
}

Response

Header

Header Code	Description
200	Child summary has been successfully retrieved

Body

JSON

{
    "resourceType": "Bundle",
    "id": "6e1c0f94-d0c9-41b6-b1e8-e4358b4d31bf",
    "meta": {
        "lastUpdated": "2023-06-09T09:33:32.166514+00:00"
    },
    "type": "searchset",
    "entry": [
        {
            "resource": {
                "resourceType": "Patient",
                "id": "0mBE6sXVpEtMpJGQkudMKzb99FpX04ZWiy0ZvMQ8JiL-aYtF9xUQWZbFnj3Xj1iK",
                "meta": {
                    "versionId": "1",
                    "lastUpdated": "2023-06-08T08:56:54.968+00:00",
                },
                "identifier": [
                    {
                        "use": "official",
                        "system": "https://fhir.nhs.uk/Id/nhs-number",
                        "value": "T:PR20230608"
                    }
                ],
                "name": [
                    {
                        "use": "official",
                        "family": "Smith",
                        "given": [
                            "Julie"
                        ],
                    }
                ],
                "birthDate": "2023-06-08T23:03:01",
            }
        }
    ]
}
