Spine Project - Neonatal Milk Administration

Overview

At a very high level, a system can send milk feed data to a RESTful endpoint on the Spine for the purpose of storing the data in BadgerNet. The Spine will then send back a simple response indicating whether or not the request was successful.

The process is synchronous, therefore the system must wait for the Spine to respond after it is finished processing the request.


Authentication

Before sending a message to the Spine, the system (client) must obtain an Access Token from the Spine’s Identity Server. This requires a client ID, secret and scope, which will be described in more detail below.

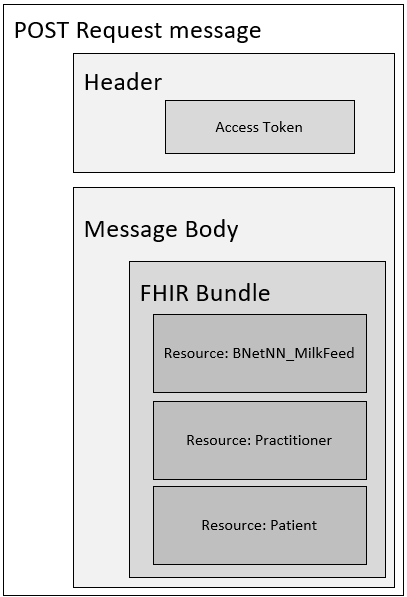

Message format

Once a token is obtained, the milk feed can be sent to the Spine as a POST (create) or PUT (update) request message along with the token. The milk feed must be a JSON-formatted FHIR version 4 resource, which is detailed further on this page.

The milk feed is composed of a FHIR bundle with three resources each representing different parts of a feed:

  • BNetNN_MilkFeed resource
    Contains all feed-related information. Stands for BadgerNet Neonatal Milk Feed

  • Practitioner resource
    Contains information about the Staff Member who administered the feed, such as their ID

  • Patient resource
    Contains the information about the baby receiving the feed, such as the baby’s National ID


How to Send a Milk Feed

This section provides instructions on how to send a milk feed to the Spine. It centers around mandatory data items the Spine requires for data to be populated.

Pre-requisite: set up an account on BadgerNet

Before a Milk Feed can be sent to the Spine, the credentials used to obtain the access token by the client system must be set up in BadgerNet. These credentials are in the form of a user account on BadgerNet.
The BadgerNet username and password are the same as the Client ID and Secret used to obtain an access token.

A Spine Client User needs to be set up within a BadgerNet Care Location for it to receive feeds for a baby’s care record within the Care Location.

This can be done by a BadgerNet Care Location administrator. For the initial onboarding phase, these details will be provided.

Step 1: Obtain a Token

Please see the following page on how to obtain an access token Client Authentication

The Client ID being sent to the Identity Server is actually a BadgerNet username. This is set up in BadgerNet and can be composed of letters, numbers and hyphens.
One tracking device must have one BadgerNet username

Step 2: Send the request message

Once an access token string has been obtained, it can be added to the request message along with the milk feed in the form of FHIR.

Message Header

Key: Authorisation

  • The Spine expects the access token to be included in the Header of the message following the OAuth 2.0 Bearer Token standard.

  • The header must contain a Key with the name: Authorization.

  • The value of this key must begin with Bearer, followed by a space, followed by the token.

Message Body

The body of the request message must be the milk feed in a JSON-formatted FHIR message, which is detailed below. The body must be the same for creating and updating a milk feed.

Endpoints

There are two endpoints listed below: one to create a new milk feed and the other to update an existing milk feed. Each endpoint has a dollar($) sign indicating it is a FHIR Custom Operation.

In the endpoints listed below, [baseUrl] is the base URL which will be provided separately.

Create

POST [baseUrl]/MedicationAdministration/$create-milk-feed

Update

To update an existing milk feed, the [id] of the milk feed must be provided, which is obtained after a milk feed is created.

POST [baseUrl]/MedicationAdministration/[id]/$update-milk-feed

Although “PUT” would be the logical choice for a HTTP Method, the FHIR protocol doesn’t support PUT for Custom Operations - it must be POST.

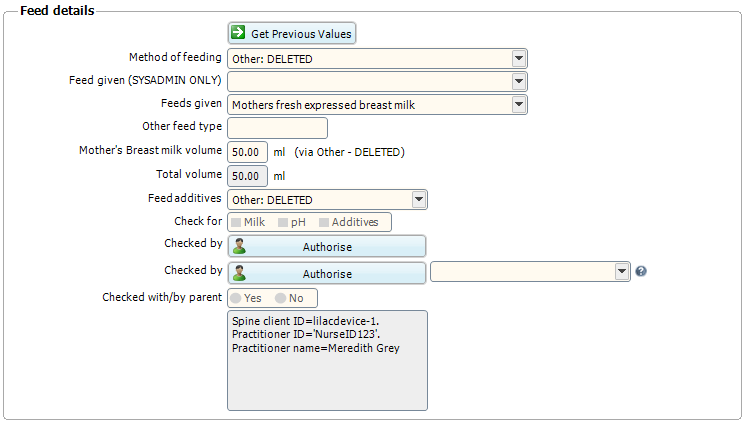

Deleting a Milk Feed

A milk feed note can’t be deleted from BadgerNet via the Spine; it must be done in BadgerNet directly. It is recommended to “superficially” or “soft” delete the note instead by updating it and setting the following:

  • volume to be 0

  • Additives to DELETED

  • Feed method to DELETED

Since the Product can’t be a custom value, it can be left unchanged.

Step 3: Process Response

The Spine uses standard HTTP response status codes - for example, in the context of Milk Feeds:

  • 201: Milk Feed successfully created

  • 204: Update of Milk Feed successful

  • 400: Bad request message; details will be provided in the message body in the form of an Operation Outcome

  • 401: Unauthorized. It is likely the token used to access the endpoint has timed out. Request another token or contact Clevermed for support as it may be an issue with client configuration and/or credentials.

  • 403: Forbidden. It is likely the credentials used to obtain the token do not have permissions to access Milk Feeds. This must be configured in BadgerNet.

  • 404: Not Found. Cannot locate milk feed based on the provided ID

  • 409: Conflict. Cannot create/update milk feed because a conflict occurred. It is likely there are multiple open baby records. This can be resolved in BadgerNet.

  • 422: Failed to process milk feed due to a business error. Details will be provided in the message body in the form of an Operation Outcome.

  • 500: An internal error occurred within the Spine.

Get a Milk Feed ID

When a milk feed is successfully created, a HTTP Status Code of 201 is sent back.

The ID of the milk feed which is required if the feed is to be updated can be found in the response message header.

The ID resides in the Header key named X-Logical-Id, which is a unique Guid.


Milk Feed Message Specification

Milk feed data must be in the form of FHIR (version 4) and in a JSON format, populated with the below listed mandatory data items.

Resource 1: BNetNN_MilkFeed

The Spine uses a customised FHIR Resource called BNetNN_MilkFeed, which is derived from the FHIR resource MedicationAdministration. This resource is used to capture details of the milk feed that is administered.

BNetNN_MilkFeed mandatory data

Data Item

Details

Reference to Patient resource containing Baby ID

The Baby’s National ID (NHS or CHI number) is contained within a separate Patient resource. This Patient resource has an ID which is contained in the BNetNN_MilkFeed

Feed Method

The manner by which feed was given.
This is in the form of a SNOMED code or a custom value.

Volume

The amount of feed given in ml.

Product

The milk feed product that was given.
This must be a BadgerNet specific Code.
If the code is not available, a request must be submitted to Clevermed for it to be included.

Time of feed

The time the feed was given in UTC.

Staff member

The member of staff who administered the feed.

Device ID

The ID of the client system.
This is required in the request message to obtain an access token and not in the Milk Feed resource.
The Spine will know which Device ID is being used as it is contained in the token, which is in the header of every request message.

Status

This is a static value which should always be “completed".
The purpose of this is to confirm with FHIR

BNetNN_MilkFeed Optional Items

Data Item

Details

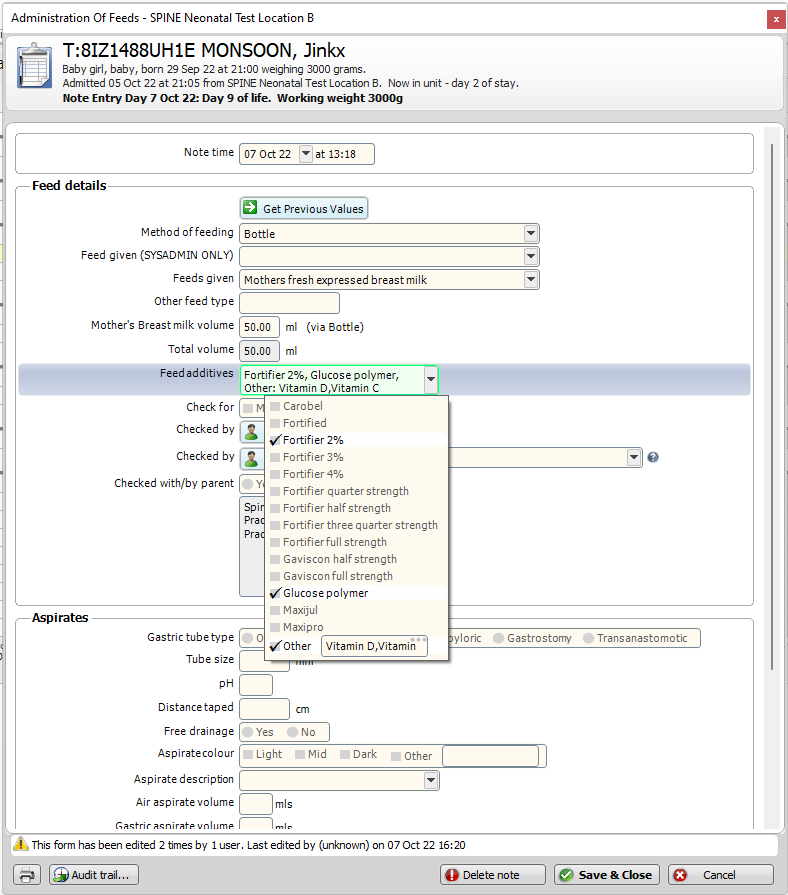

Additive

The additive or fortifier within the product.

Either a BadgerNet specific Code or a custom value can be provided.
Multiple additives can be provided

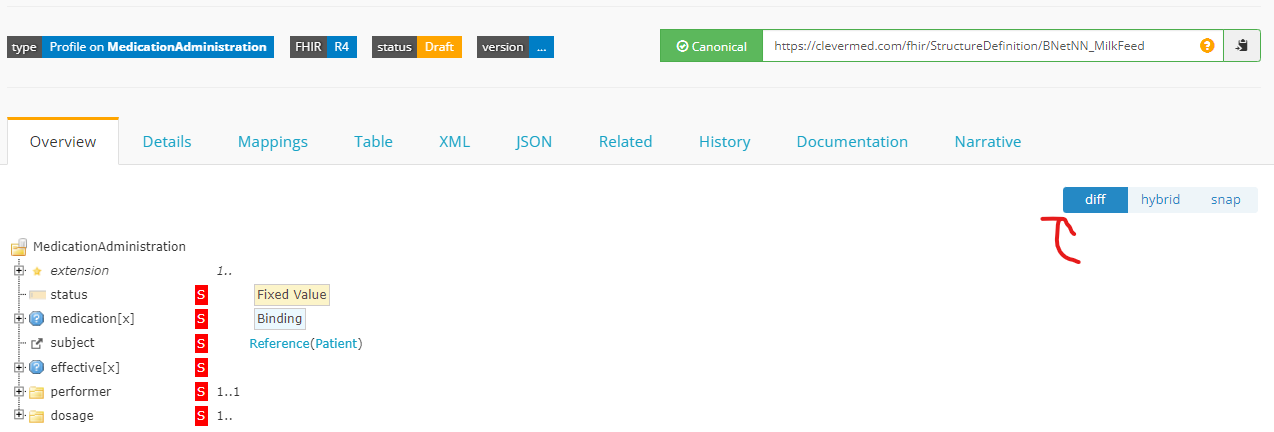

A more detailed specification of the BNetNN_MilkFeed can be found on Simplifier.net at https://simplifier.net/badgernet/bnetnn_milkfeed. This spec includes for example, restrictions and cardinality.

The spec on Simiplifer.net offers a comparison view between the MedicationAdministration resource and what has been changed to make it a BNetNN_MilkFeed. For example, it is mandatory in the NBetNN_MilkFeed to provide the dosage information (whereas the MedicationAdministration resource states it is optional). To view the difference, simply go to the BNetNN_MilkFeed spec on Simplifier and select diff, as highlighted below:

The BNetNN_MilkFeed resource specification on Simplifier.net

Elements marked with S in red mean they are mandatory.

Resource 2: Practitioner (staff member)

The second resource required in the Bundle is a Practitioner resource. It is very lightweight and just needs to contain the ID of the staff member administering the milk feed. The BNetNN_MilkFeed resource then references the Practitioner resource.

Practitioner mandatory data

Data Item

Details

Resource ID

This must be a unique Guid to identify this resource. It is used in the MedicationAdministration resource to reference the Practitioner resource.
Note: This ID is used only once by the Spine. It can be a newly generated ID and does not need to be stored by the sender

Practitioner ID

The ID of the staff member administering the feed.

Practitioner optional data

Data Item

Details

Name

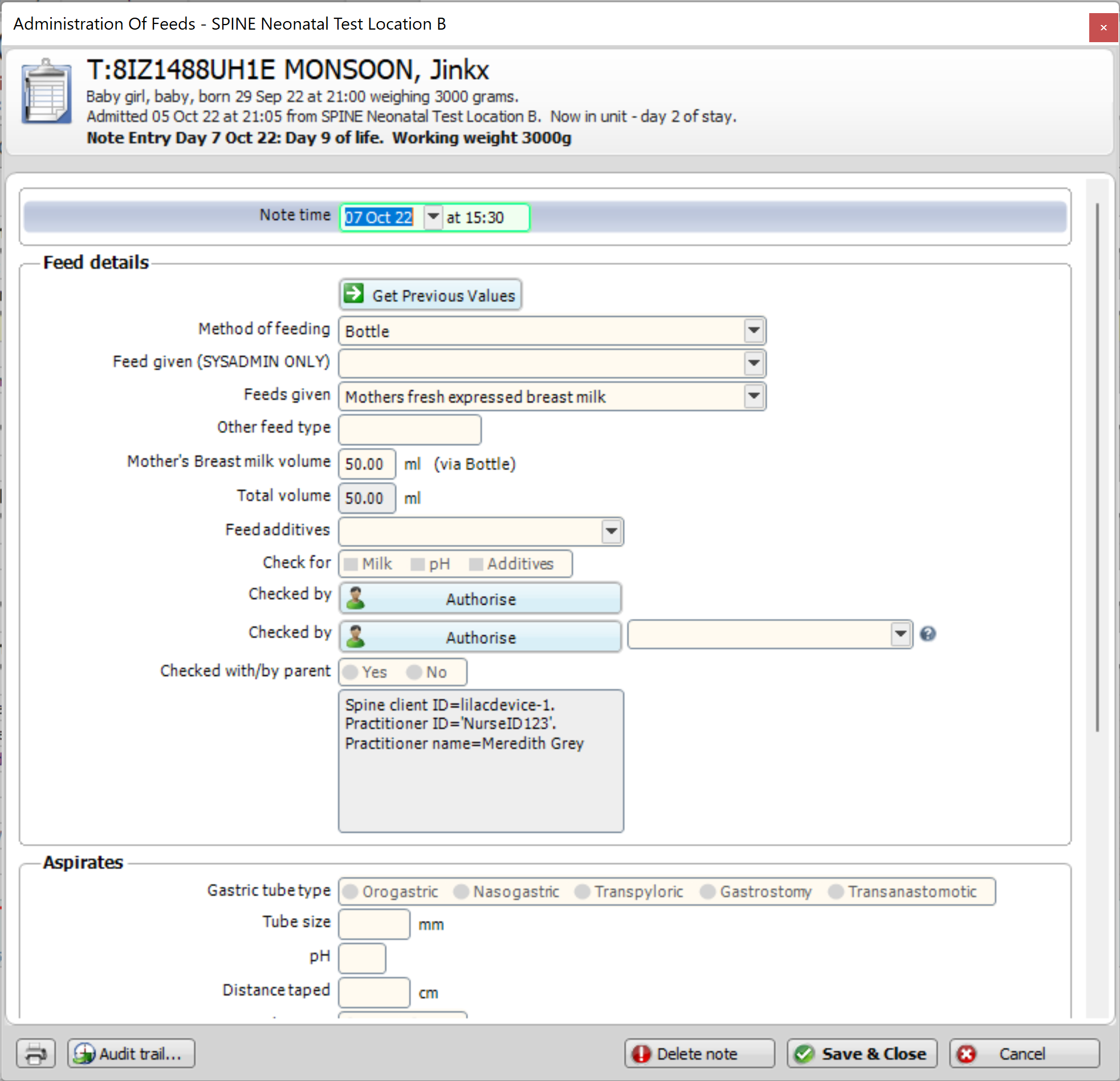

Details of the Staff Member’s name will be populated in the milk feed if it is provided

Resource 3: Patient (baby)

The third resource required in the Bundle is a Patient resource. Like the Practitioner resource, it is lightweight and requires the Baby’s National ID. The BNetNN_MilkFeed resource references the Patient resource in the same way it does the Practitioner.

The baby’s Date of Birth can be added an optional field. If provided, the Date of Birth is used to locate the Baby Record in BadgerNet. If it isn’t provided, the Spine will attempt to locate the Baby Record solely on the provided National ID.

Patient mandatory data

Data Item

Details

Resource ID

This must be a unique Guid to identify this resource. It is used in the MedicationAdministration resource to reference the Patient resource.
Note: This ID is used only once by the Spine. It can be a newly generated ID and does not need to be stored by the sender

Baby ID

The National ID of the baby receiving the feed. This is used to find the baby’s record

Patient optional data

Data Item

Details

Date of Birth

The Baby’s birth date is used to help locate the baby’s record. If this is provided it must be correct

Name

Details of the Baby’s name. This is not used in the milk feed


BadgerNet Codes (Value Sets)

Each data item in BadgerNet has a unique code (aka BadgerNet Code). These codes have been made public and are stored on our Simplifier Profile, where they will be kept up to date.

One benefit of these codes being stored on Simplifier is that they are also exposed as an API, which means they can be automatically retrieved and processed by a system.

Each set of codes, also known as a Value Set, are listed below with their corresponding location.

Each Product, Additive and method code are independent of each other.

Milk Product Codes

Source: https://simplifier.net/badgernet/ValueSet-BNet-Child-NNMilkFeedProduct

GET Url: https://fhir.simplifier.net/BadgerNet/ValueSet/BNetNNMilkFeedProductValueSet

Milk Additives

Source: https://simplifier.net/badgernet/ValueSet-BNet-Child-NNMilkFeedAdditive

GET Url: https://fhir.simplifier.net/BadgerNet/ValueSet/BNetNNMilkFeedAdditiveValueSet

Feeding Methods

Source: https://simplifier.net/badgernet/ValueSet-BNet-Child-NNMilkFeedingMethod

GET Url: https://fhir.simplifier.net/BadgerNet/ValueSet/BNetNNMilkFeedMethodValueSet

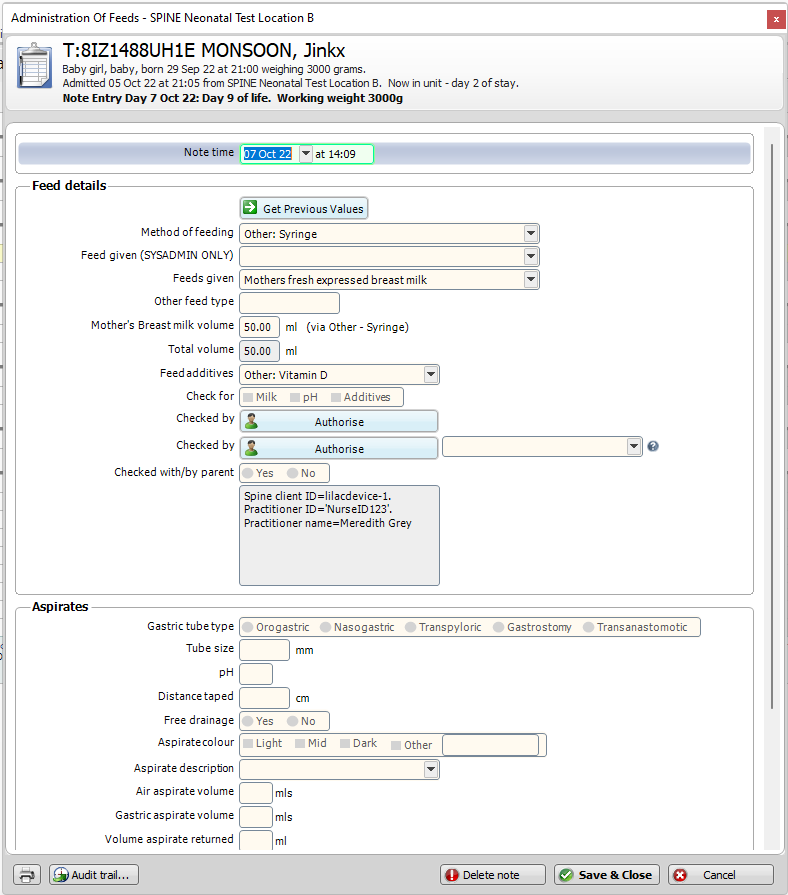

Using custom data items instead of a BadgerNet/SNOMED Code

A custom string can be used if an appropriate BadgerNet or SNOMED code can’t be used.

A FHIR CodeableConcept allows for this:

A free text only representation of the concept without any coding elements is permitted if there is no appropriate code and only free text is available (and not prohibited by the implementation).

It is strongly advised to use BadgerNet codes instead of custom values where possible.
Please get in touch if custom values become frequent as they could be added to BadgerNet.


Spine FHIR Resource Structure

FHIR Structure: BNetNN_MilkFeed

The FHIR Resource the Spine requires for milk feeds is based on the FHIR resource MedicationAdministration. The only difference between the two is that the BNetNN_MilkFeed resource has an extension to it, which means it has an added element - specifically, to add the Additive string value.

Client systems can populate as many fields as it would like in the resource, however the Spine will only process the minimum amount of mandatory values.

The table below lists the mandatory elements within the BNetNN_MilkFeed resource at a high level.
Details, such as cardinality and other restrictions can be found in the Simplifier profile for BNetNN_MilkFeed.

Examples of messages for clarification are on this page below.

FHIR Element

Required details

Mandatory/ Optional

Comment

Meta

Element Type: Meta

Profile: http://hl7.org.nz/fhir/StructureDefinition/BNetNN_MilkFeed

Mandatory

This tells the Spine that this resource is a BNetNN_MilkFeed

Subject

Element Type: Reference (Patient)

The relative path to the Practitioner resource

Mandatory

This element is a Reference to a Patient resource within the Bundle containing details of the baby.

Status

Element Type: Code

Completed

Mandatory

This is a fixed value (“completed”) indicating the milk feed is complete

Medication

Element Type: CodeableConcept

System: https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedProductValueSet

Code: BadgerNet Product code

Mandatory

This is the feed that was given.

A BadgerNet defined value set is the value of this field. A custom value may not be used.
If a code in the value set is missing, it can be provided by Clevermed.

Effective

Element Type: dateTime

Value: DateTime of feed

Mandatory

The DateTime of the feed in UTC

Performer

Element Type: Reference (Practitioner)

Actor: The relative path to the Practitioner resource

Mandatory

Who performed the intake (staff member) is a reference to a Practitioner resource within the same Bundle as the BNetNN_MilkFeed

Dosage

  • Method:
    Element Type: CodeableConcept
    System: http://snomed.info/sct
    Code: SNOMED code

  • Dose:
    Element Type: SimpleQuantity
    Value: The volume amount
    Unit: ml

Mandatory

Feeding method is a SNOMED code which can be looked up under https://snomedbrowser.com/, otherwise a custom string may be provided as described.
SNOMED codes supported in BadgerNet can be found at https://simplifier.net/badgernet/bnetnnmilkfeedmethodvalueset

The Dose is a decimal value and in ml

Additive

Element Type: Extension(CodeableConcept)

URL: https://clevermed.com/fhir/Extension/MilkFeedAdditive

system:
value: BadgerNet Additive code

Optional

This is a FHIR extension to the MedicationAdministration resource.
Multiple codes from the BNetNNMilkFeedAdditiveValueSet value set and custom values may be provided


FHIR Structure: Practitioner

This Practitioner resource is very lightweight, as highlighted in the table below:

FHIR Element

Required details

Mandatory/ Optional

Comment

id

Element Type: id
Value: Guid

Mandatory

A Guid value to uniquely identify this resource.
Note: This ID is used only once by the Spine. It can be a newly generated ID when the Bundle is created and does not need to be stored by the sender

Identifier

Element Type: Identifier

  • System: https://clevermed.com/fhir/ValueSet/UKPractitioner

  • Value: The staff member’s ID

  • Use: Official

Mandatory

The System indicates the value is a staff member ID.

Use the value field to populate the user’s ID.

Name

Element Type: HumanName

  • Value: The staff member’s name

  • Use: Official

Optional

This is used in the milk feed as meta data if provided


FHIR Structure: Patient

The Patient resource within the Bundle contains details of the baby. It is also very lightweight, as highlighted below:

FHIR Element

Required details

Mandatory/ Optional

Comment

id

Element Type: id
Value: Guid

Mandatory

A Guid value to uniquely identify this resource.
Note: This ID is used only once by the Spine. It can be a newly generated ID when the Bundle is created and does not need to be stored by the sender

Identifier

Element Type: Identifier

Mandatory

The System indicates the value is an NHS number in England and Wales.
For Scotland, the system is https://www.datadictionary.nhs.uk/data_dictionary/attributes/c/com/community_health_index_number_de.asp

If Northern Ireland is required, please get in touch with Clevermed.

Date of Birth

Element Type: Date

Value: Baby’s Date of Birth

Optional

Optional
If the Date of Birth is provided, the Spine will use the information to locate the Baby Record.
Although it is optional, if used the Date of Birth must be correct

Name

Element Type: HumanName

  • Value: The baby’s name

  • Use: Official

Optional

This is currently not used


How a Baby Care Record is identified by the Spine

A baby may have multiple care records in BadgerNet, which means they share the same National ID.

The Spine uses the open care record of a baby to store milk feeds. If more than one open record exists for the same National ID, a 409 (Conflict) HTTP Status Code is returned from the Spine. This conflict can only be resolved in BadgerNet.


Example messages

Below are test message examples to create and update a milk feed. Each example contains the minimum amount of data required to generate a milk feed dataset in BadgerNet and may have optional data.

The example create a milk feed on a baby record with the national ID of “T:8IZ1488UH1E”.

Examples have been created using the FHIR SDK by Firely.

Example 1: Using BadgerNet Codes

This request message creates the following milk feed data item in BadgerNet using only Value Sets (i.e. BadgerNet and SNOMED codes).

Request method: POST

  • Baby ID: T:8IZ1488UH1E

  • Feed Method: Bottle

  • Volume: 50 ml

  • Product: Mother's fresh expressed breast milk

  • Additive: None

  • Time of Feed: A UTC DateTime stamp

  • Staff Member ID: NurseID123

  • Device ID: This will have been provided in the token

JSON
{
    "resourceType": "Bundle",
    "type": "collection",
    "entry": [
        {
            "resource": {
                "resourceType": "Patient",
                "id": "bdad9033-90e1-4115-a875-4eb4574df9a1",
                "identifier": [
                    {
                        "use": "official",
                        "system": "https://fhir.nhs.uk/Id/nhs-number",
                        "value": "T:8IZ1488UH1E"
                    }
                ],
                "name": [
                    {
                        "use": "official",
                        "family": "Monsoon",
                        "given": [
                            "Jinkx"
                        ]
                    }
                ],
                "birthDate": "2022-09-29"
            }
        },
        {
            "resource": {
                "resourceType": "Practitioner",
                "id": "df581cac-7312-433d-9141-f20a84f8e2c8",
                "identifier": [
                    {
                        "system": "https://clevermed.com/fhir/ValueSet/UKPractitioner",
                        "value": "NurseID123"
                    }
                ],
                "name": [
                    {
                        "family": "Grey",
                        "given": [
                            "Meredith"
                        ],
                        "prefix": [
                            "Dr"
                        ]
                    }
                ]
            }
        },
        {
            "resource": {
                "resourceType": "MedicationAdministration",
                "meta": {
                    "profile": [
                        "https://clevermed.com/fhir/StructureDefinition/BNetNN_MilkFeed"
                    ]
                },
                "extension": [
                    {
                        "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditives"
                    }
                ],
                "status": "completed",
                "medicationCodeableConcept": {
                    "coding": [
                        {
                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedProductValueSet",
                            "code": "501004"
                        }
                    ]
                },
                "subject": {
                    "reference": "Patient/bdad9033-90e1-4115-a875-4eb4574df9a1"
                },
                "effectiveDateTime": "2022-10-07T14:30:58.4583881+00:00",
                "performer": [
                    {
                        "actor": {
                            "reference": "Practitioner/df581cac-7312-433d-9141-f20a84f8e2c8"
                        }
                    }
                ],
                "dosage": {
                    "method": {
                        "coding": [
                            {
                                "system": "http://snomed.info/sct",
                                "code": "470649004"
                            }
                        ]
                    },
                    "dose": {
                        "value": 50,
                        "unit": "ml",
                        "system": "http://unitsofmeasure.org",
                        "code": "ml"
                    }
                }
            }
        }
    ]
}

Response

A successful 201 http response code with the ID (Guid) of the milk feed in the header's X-Logical-Id key. This is the ID needed if the milk feed should be later updated.

Outcome

Example 2: Custom milk feed data

This request message is an example of a milk feed which uses custom values where possible.

Request method: POST

  • Baby ID: T:8IZ1488UH1E

  • Feed Method: Syringe

  • Volume: 50ml

  • Product: Mother's fresh expressed breast milk

  • Additive: Vitamin D

  • Time of Feed: A UTC DateTime stamp

  • Staff Member ID: NurseID123

  • Device ID: This will have been provided in the token

CODE
{
    "resourceType": "Bundle",
    "type": "collection",
    "entry": [
        {
            "resource": {
                "resourceType": "Patient",
                "id": "a933d728-1604-4a36-90bb-83bb44e3436d",
                "identifier": [
                    {
                        "use": "official",
                        "system": "https://fhir.nhs.uk/Id/nhs-number",
                        "value": "T:8IZ1488UH1E"
                    }
                ],
                "name": [
                    {
                        "use": "official",
                        "family": "Monsoon",
                        "given": [
                            "Jinkx"
                        ]
                    }
                ],
                "birthDate": "2022-09-29"
            }
        },
        {
            "resource": {
                "resourceType": "Practitioner",
                "id": "5267532f-4fff-46e9-8a58-1eded156e966",
                "identifier": [
                    {
                        "system": "https://clevermed.com/fhir/ValueSet/UKPractitioner",
                        "value": "NurseID123"
                    }
                ],
                "name": [
                    {
                        "family": "Grey",
                        "given": [
                            "Meredith"
                        ],
                        "prefix": [
                            "Dr"
                        ]
                    }
                ]
            }
        },
        {
            "resource": {
                "resourceType": "MedicationAdministration",
                "meta": {
                    "profile": [
                        "https://clevermed.com/fhir/StructureDefinition/BNetNN_MilkFeed"
                    ]
                },
                "extension": [
                    {
                        "extension": [
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "text": "Vitamin D"
                                }
                            }
                        ],
                        "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditives"
                    }
                ],
                "status": "completed",
                "medicationCodeableConcept": {
                    "coding": [
                        {
                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedProductValueSet",
                            "code": "501004"
                        }
                    ]
                },
                "subject": {
                    "reference": "Patient/a933d728-1604-4a36-90bb-83bb44e3436d"
                },
                "effectiveDateTime": "2022-10-07T13:09:58.4684759+00:00",
                "performer": [
                    {
                        "actor": {
                            "reference": "Practitioner/5267532f-4fff-46e9-8a58-1eded156e966"
                        }
                    }
                ],
                "dosage": {
                    "method": {
                        "text": "Syringe"
                    },
                    "dose": {
                        "value": 50,
                        "unit": "ml",
                        "system": "http://unitsofmeasure.org",
                        "code": "ml"
                    }
                }
            }
        }
    ]
}

Response

A successful 201 http response code with the ID (Guid) of the milk feed in the headers' X-Logical-Id key. This is the ID needed if the milk feed should be later updated.

Outcome

Example 3: Milk feed with multiple additives

This request message is an example of a milk feed containing multiple additives, two of which are custom values: “Vitamin D” and “Vitamin C”.

Request method: POST

  • Baby ID: T:8IZ1488UH1E

  • Feed Method: Bottle

  • Volume: 50ml

  • Product: Mothers fresh expressed breast milk

  • Additives: Fortifier 2%, Vitamin D, Glucose polymer, Vitamin C

  • Time of Feed: A UTC DateTime stamp

  • Staff Member ID: NurseID456

  • Device ID: This will have been provided in the token

Note how the parent Extension has a different URL to its child Extensions (details).

JSON
{
    "resourceType": "Bundle",
    "type": "collection",
    "entry": [
        {
            "resource": {
                "resourceType": "Patient",
                "id": "e24609b4-930a-463c-b603-352ed7c05b33",
                "identifier": [
                    {
                        "use": "official",
                        "system": "https://fhir.nhs.uk/Id/nhs-number",
                        "value": "T:8IZ1488UH1E"
                    }
                ],
                "name": [
                    {
                        "use": "official",
                        "family": "Monsoon",
                        "given": [
                            "Jinkx"
                        ]
                    }
                ],
                "birthDate": "2022-09-29"
            }
        },
        {
            "resource": {
                "resourceType": "Practitioner",
                "id": "99236a46-7ef1-488f-ade6-c9db7581bf1a",
                "identifier": [
                    {
                        "system": "https://clevermed.com/fhir/ValueSet/UKPractitioner",
                        "value": "NurseID123"
                    }
                ],
                "name": [
                    {
                        "family": "Grey",
                        "given": [
                            "Meredith"
                        ],
                        "prefix": [
                            "Dr"
                        ]
                    }
                ]
            }
        },
        {
            "resource": {
                "resourceType": "MedicationAdministration",
                "meta": {
                    "profile": [
                        "https://clevermed.com/fhir/StructureDefinition/BNetNN_MilkFeed"
                    ]
                },
                "extension": [
                    {
                        "extension": [
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "coding": [
                                        {
                                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedAdditiveValueSet",
                                            "code": "F2"
                                        }
                                    ]
                                }
                            },
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "text": "Vitamin D"
                                }
                            },
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "coding": [
                                        {
                                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedAdditiveValueSet",
                                            "code": "G2"
                                        }
                                    ]
                                }
                            },
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "text": "Vitamin C"
                                }
                            }
                        ],
                        "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditives"
                    }
                ],
                "status": "completed",
                "medicationCodeableConcept": {
                    "coding": [
                        {
                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedProductValueSet",
                            "code": "501004"
                        }
                    ]
                },
                "subject": {
                    "reference": "Patient/e24609b4-930a-463c-b603-352ed7c05b33"
                },
                "effectiveDateTime": "2022-10-07T12:18:22.1510368+00:00",
                "performer": [
                    {
                        "actor": {
                            "reference": "Practitioner/99236a46-7ef1-488f-ade6-c9db7581bf1a"
                        }
                    }
                ],
                "dosage": {
                    "method": {
                        "coding": [
                            {
                                "system": "http://snomed.info/sct",
                                "code": "470649004"
                            }
                        ]
                    },
                    "dose": {
                        "value": 50,
                        "unit": "ml",
                        "system": "http://unitsofmeasure.org",
                        "code": "ml"
                    }
                }
            }
        }
    ]
}

Response

A successful 201 http response code with the ID (Guid) of the milk feed in the header's X-Logical-Id key. This is the ID needed if the milk feed should be later updated.

Outcome

Example 4: Update a milk feed

The message body to update a milk feed is the exactly the same as creating a milk feed. The only difference is:

Response

A successful 204 http response code

Example 5: Cancelling a milk feed

The only way to effectively delete a milk feed is to set the volume of the product to 0. All other parameters may remain the same, however for added measure it is recommended they be “DELETE” as a custom value for improved visibility for a BadgerNet user.

A Patient and Practitioner resource must still be referenced to the BNetNN_MilkFeed resource

Request method: POST

CODE
{
    "resourceType": "Bundle",
    "type": "collection",
    "entry": [
        {
            "resource": {
                "resourceType": "Patient",
                "id": "e61e0c07-81a5-470f-beea-3cf3319a4113",
                "identifier": [
                    {
                        "use": "official",
                        "system": "https://fhir.nhs.uk/Id/nhs-number",
                        "value": "T:8IZ1488UH1E"
                    }
                ],
                "name": [
                    {
                        "use": "official",
                        "family": "Monsoon",
                        "given": [
                            "Jinkx"
                        ]
                    }
                ],
                "birthDate": "2022-09-29"
            }
        },
        {
            "resource": {
                "resourceType": "Practitioner",
                "id": "6b5557a1-4203-4f83-901b-7f9bff496b68",
                "identifier": [
                    {
                        "system": "https://clevermed.com/fhir/ValueSet/UKPractitioner",
                        "value": "NurseID123"
                    }
                ],
                "name": [
                    {
                        "family": "Grey",
                        "given": [
                            "Meredith"
                        ],
                        "prefix": [
                            "Dr"
                        ]
                    }
                ]
            }
        },
        {
            "resource": {
                "resourceType": "MedicationAdministration",
                "meta": {
                    "profile": [
                        "https://clevermed.com/fhir/StructureDefinition/BNetNN_MilkFeed"
                    ]
                },
                "extension": [
                    {
                        "extension": [
                            {
                                "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditive",
                                "valueCodeableConcept": {
                                    "text": "DELETED"
                                }
                            }
                        ],
                        "url": "https://clevermed.com/fhir/StructureDefinition/BNetNNMilkFeedAdditives"
                    }
                ],
                "status": "completed",
                "medicationCodeableConcept": {
                    "coding": [
                        {
                            "system": "https://clevermed.com/fhir/ValueSet/BNetNN_MilkFeedProductValueSet",
                            "code": "501004"
                        }
                    ]
                },
                "subject": {
                    "reference": "Patient/e61e0c07-81a5-470f-beea-3cf3319a4113"
                },
                "effectiveDateTime": "2022-10-07T12:23:05.4536276+00:00",
                "performer": [
                    {
                        "actor": {
                            "reference": "Practitioner/6b5557a1-4203-4f83-901b-7f9bff496b68"
                        }
                    }
                ],
                "dosage": {
                    "method": {
                        "text": "DELETED"
                    },
                    "dose": {
                        "value": 50,
                        "unit": "ml",
                        "system": "http://unitsofmeasure.org",
                        "code": "ml"
                    }
                }
            }
        }
    ]
}

Outcome

A successful 204 http response code


JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
